Portable Asset Tracking
Portable asset tracking with extended battery life
No matter how good a security infrastructure is, product theft and inventory shrinkage are a

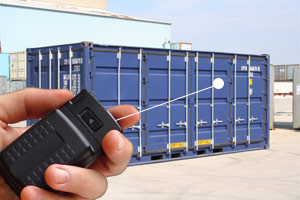

fact of life. In fact, property worth millions of dollars is lost, misplaced or stolen every day from construction sites, warehouses or while in transit.

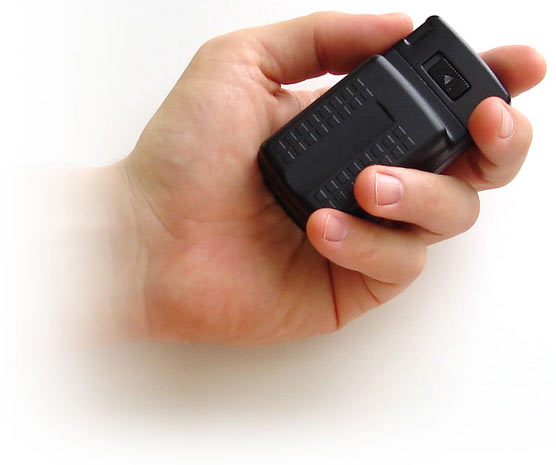

The 8200 is a wireless asset tracking beacon specifically designed to meet the needs
of business owners with high value assets that are at risk of being stolen. The 8200 utilizes state of the art location technology and is ideal for asset tracking applications because it is small, has a long battery life, and can be located indoors and in other challenging places where conventional GPS fails.
• Size: L x W x H
> 2.5 in x 1.25 in x 0.6 in
> 6.35 cm x 3.2 cm x 1.5 cm
• Weight: Approximately 5.3 oz (150g)
• Enclosure: Plastic, water-resistant
• Indicators: Bi-color LED
• Vibration: Up to 500Hz random vibration 1.25G rms
• Temperature:
> Operating: -4o to 140oF (-20° to +60°C)
> Storage: -40o to 176oF (-40° to +80°C)
• Humidity: <95% non-condensing Location Technology • Position Accuracy: > Open sky: 15 to 30 feet (5-10 meters)
> Impaired: <60 feet (<20 meters) 95% of the time
Battery
• Battery Pack: 3.7V Li-Ion
• Current Draw Stand-by: 12mW
• Current Draw Transmit: 0.65W
• Battery Life: 1800 mAh battery: Up to 10 days
3600 mAh battery: Up to 30 days
• Packet Data Speed: Up to 115kbps
• Async Data Speed: 9.6 kbps and 14.4 kbps
• TCP/IP Connection: Yes
• Quick Net Connect Support: Yes
Wireless Network Compatibility
• Cellular band:
> Rx- 869 through 894MHz
> Tx- 824 through 849MHz
• PCS band:
> Rx- 1930 through 1990MHz
> Tx- 1850 through 1910MHz
• GPS band: Rx-1575.42 (L1 carrier)
• Compliance: FCC parts 2, 15, and 90
